DIN6923 Hex Flange Nut

Short Description:

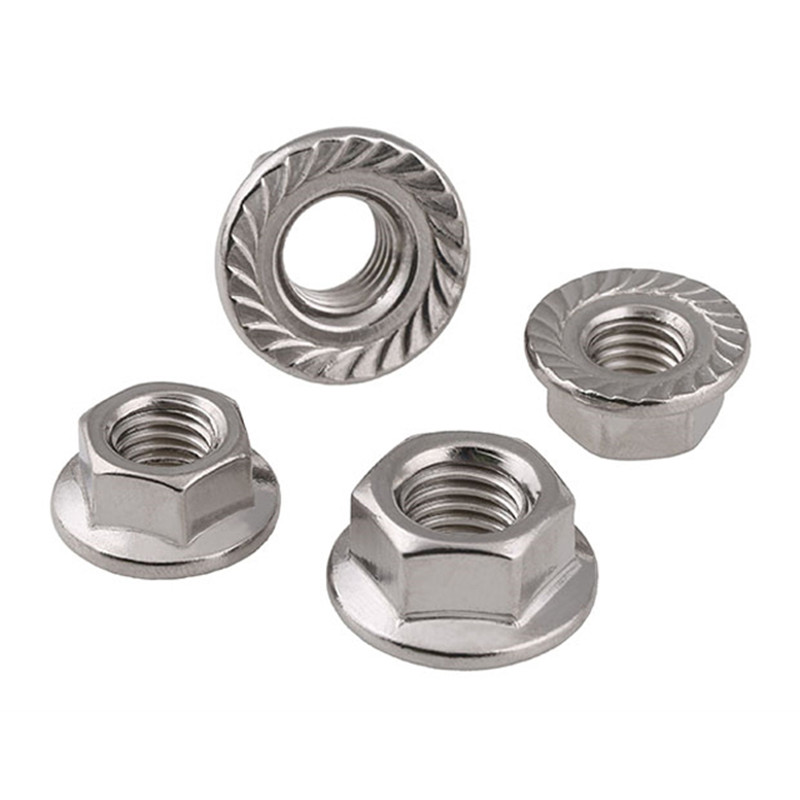

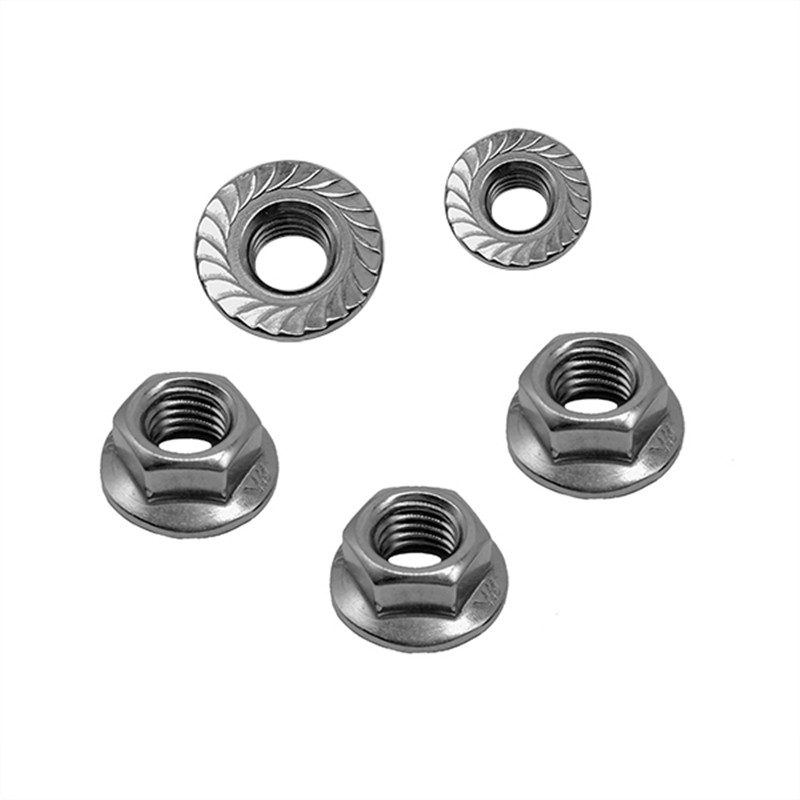

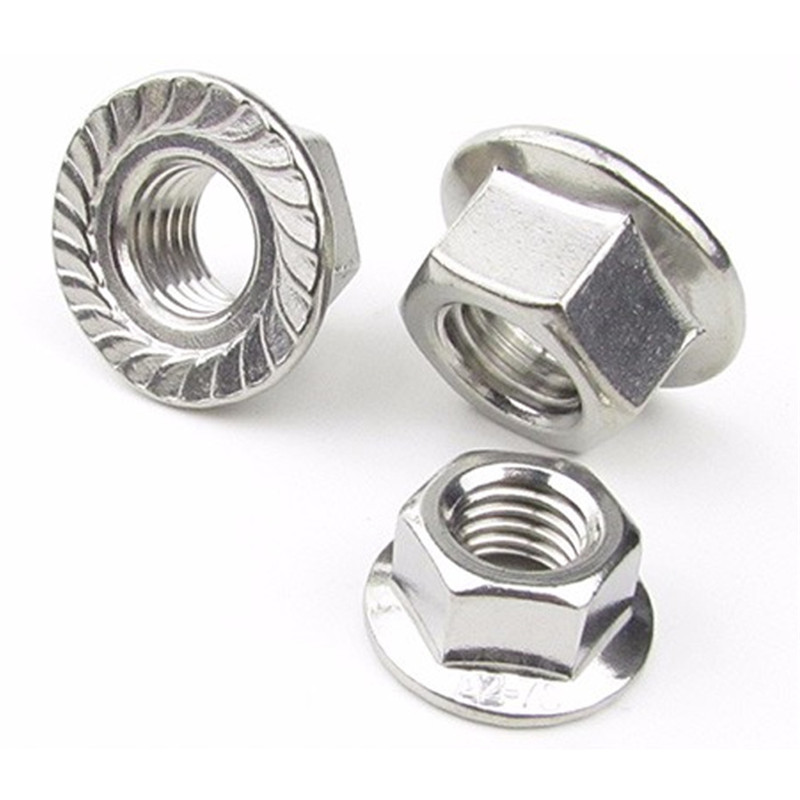

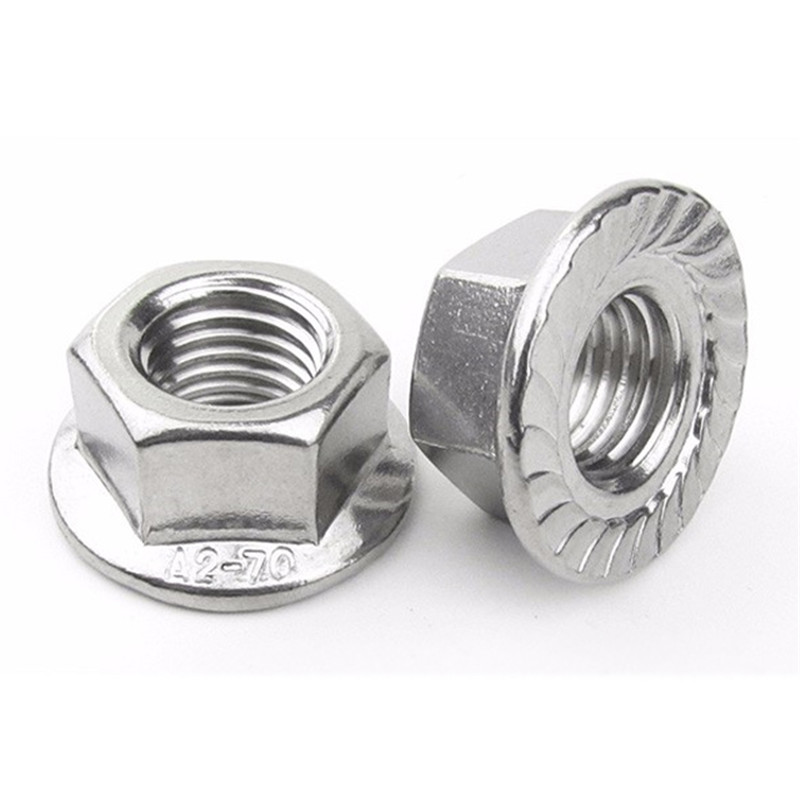

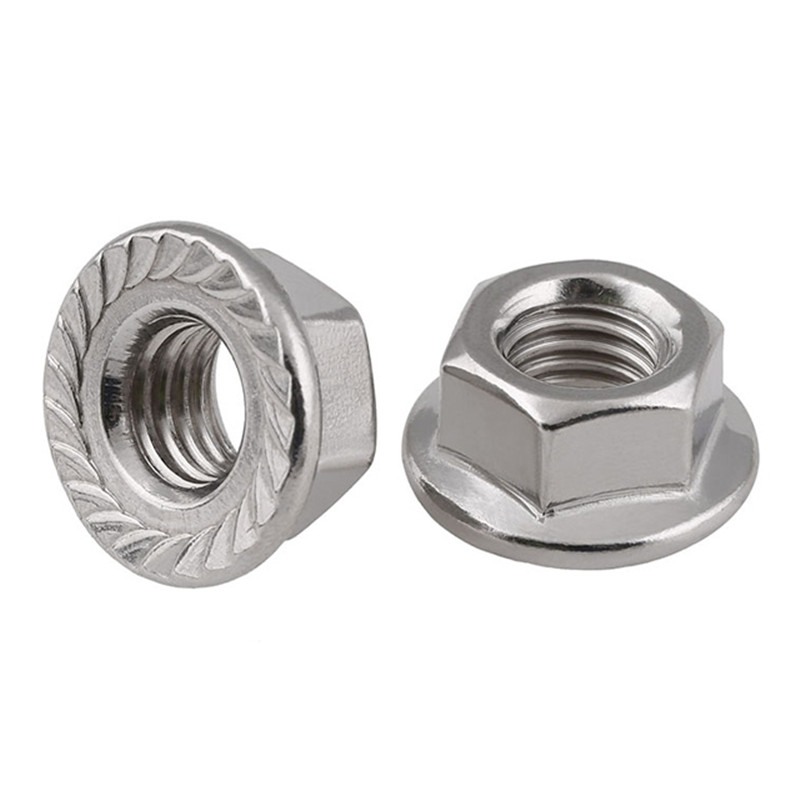

Hex Flange Nuts are hex nuts with a wide flange portion near one end that acts as an integrated non-spinning washer. Flange nuts are used to spread the load placed on the nut over a wider surface area to prevent damage to the installation material. They can come in serrated or non-serrated styles.

CONTACT NOW down load to pdf

Product Detail

Product Tags

Product catalogue

Product	Flange nut
Finish	Plain, zinc plated, black, HDG, etc.
Measurement system	Metric, Imperial (Inch)
Application	Heavy Industry, Water Treatment, General Industry
Place of Origin	Yongnian, Hebei,China
Brand Name	TYB
Standard	DIN 6923
Size	M5-M20
Material	Carbon steel
Tolerance	4H
Type	nut
Port	Tianjin Port

Note: Please lets know the Size, quantity, Material or Grade, surface, If it is special and Non-standard products, please supply the Drawing or Photos or Samples to us.

Standard

Flange nut04

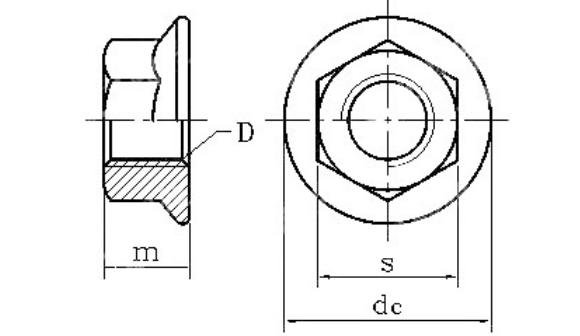

Size	m	S	Dc	Weight
M3	3.7	5.9	7.6	0.6
M4	4.3	6.8	9.1	1.2
M5	4.8	7.8	10.5	1.7
M6	5.4	9.6	12.95	3.1
M8	7	12.9	16.4	6.9
M10	8.6	14.8	.21.6	10.0
M12	9.9	17.8	23.5	17.9
M16	13.6	23.7	31.3	37.6

Product description

(1)What is a hex flange nut?
Hex Flange Nuts are hex nuts with a wide flange portion near one end that acts as an integrated non-spinning washer. Flange nuts are used to spread the load placed on the nut over a wider surface area to prevent damage to the installation material. They can come in serrated or non-serrated styles.
(2)Do you need lock washer with flange nut?
The flange on a flange nut will turn with the nut whereas a washer often will not. The washer, due to its resistance to turning, thus helps to control wear at the mating surfaces. In effect a washer will protect a surface more than a flange nut. This can be huge if locking washers are also being used on the joint.
(3)How does a flange nut work?
The integrated washer of a flange nut works in the same way as a standard washer, providing a greater area to distribute the nut’s pressure over the part being secured. If the flange has serrations, these serrations bite into the material installed, making the nut less likely to loosen over time due to vibrations.
