Short Description:

This is a nail specifically designed for wood, which will be embedded very firmly in the wood. If the wood is not decayed, it is impossible to pull it out, and even if it is forcibly pulled out, it will bring out nearby wood. One more thing to note is that the wood screws must be screwed in with a screwdriver. Do not knock in with a hammer, it will damage the surrounding wood.
The advantage of wood screws is that the consolidation ability is stronger than nailing, and it can be removed and replaced, which does not hurt the wood surface and is more convenient to use.

CONTACT NOW down load to pdf

Product Detail

Product Tags

Product catalogue

Specification

Name	wood screw/coach screw/hex lag wood screw
Size	M6-M12
Material	Carbon Steel
Grade	4.8,8.8,10.9,12.9.etc
Standard	GB, DIN, ISO, ANSI/ASTM, BS, BSW, JIS etc
Non-standards	OEM is available, according to drawing or samples
Finish	Plain, black, zinc plated, HDG
Certification	ISO9001
Package	according to customers requirement
Heat treatment	Tempering,Hardening,Spheroidizing,Stress Relieving
Process	Heading/washer assembly/Threading/Secondary machine/ heat treatment/plating/An
Parameter	Electroplate> 5MM / Hot dip> 50MM
Application	natural stone, metal structures, metal profiles, bottom plate, support plate, bracket,railings, window, curtain wall, machine, beam,beam support etc..

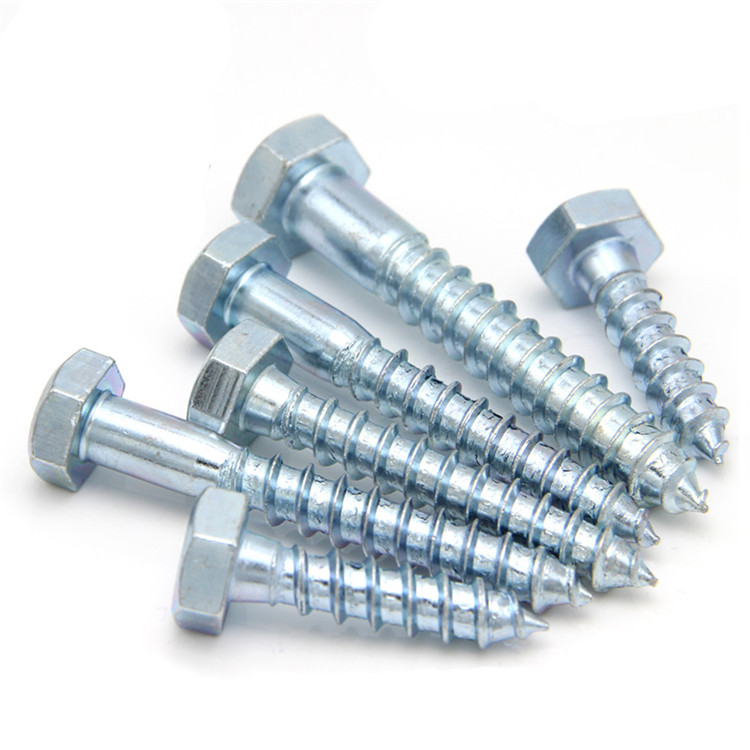

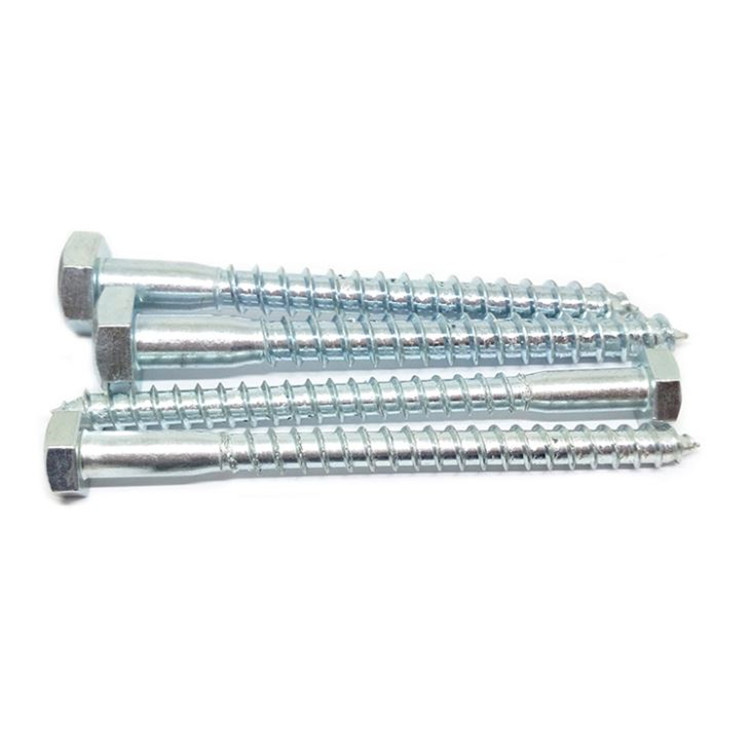

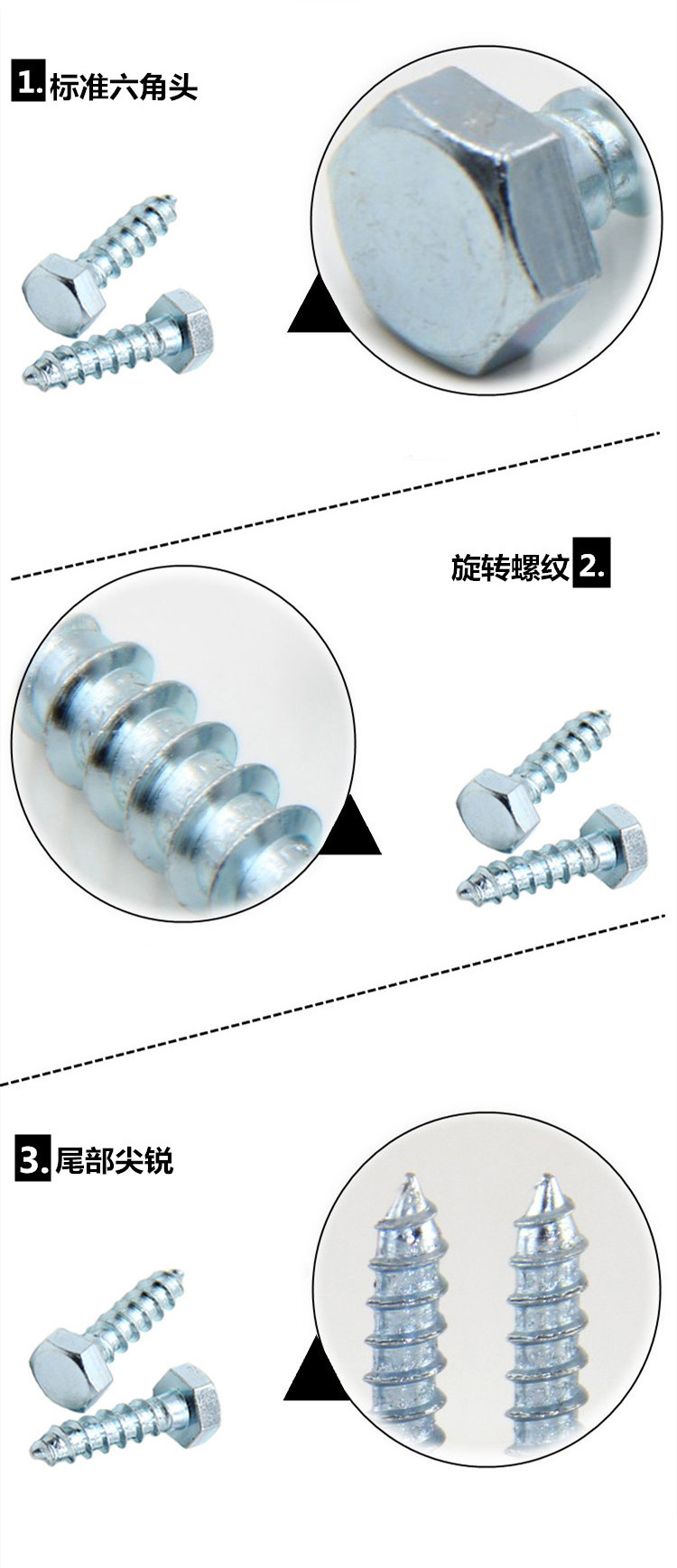

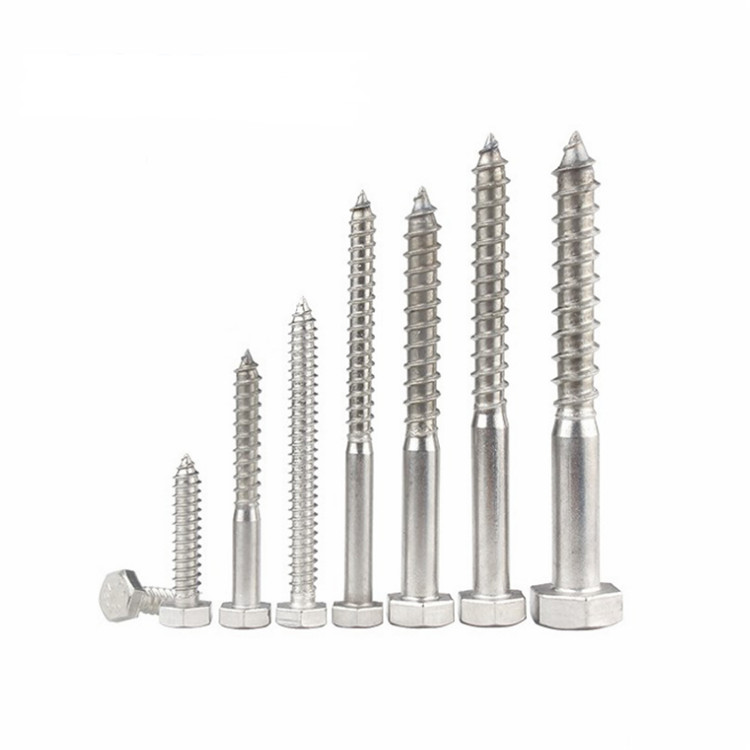

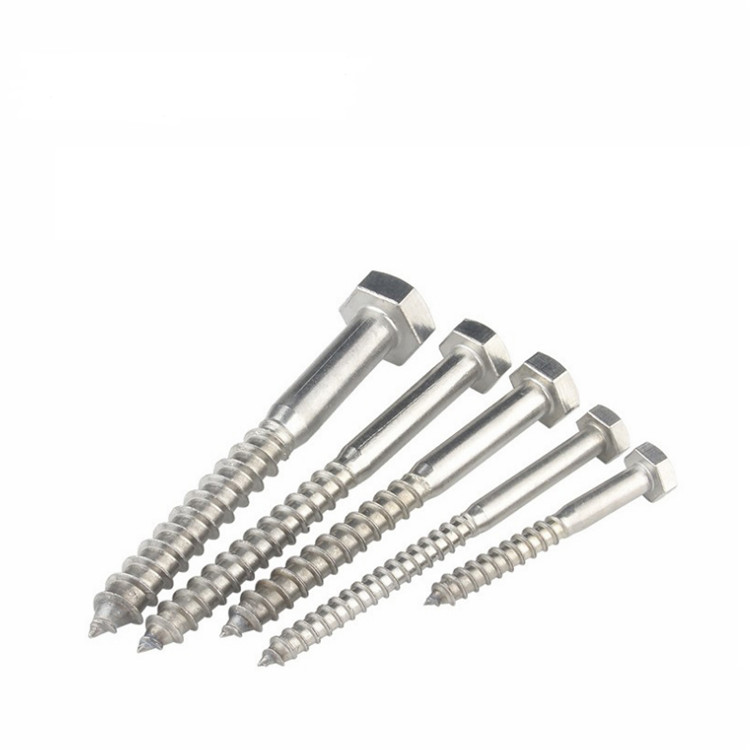

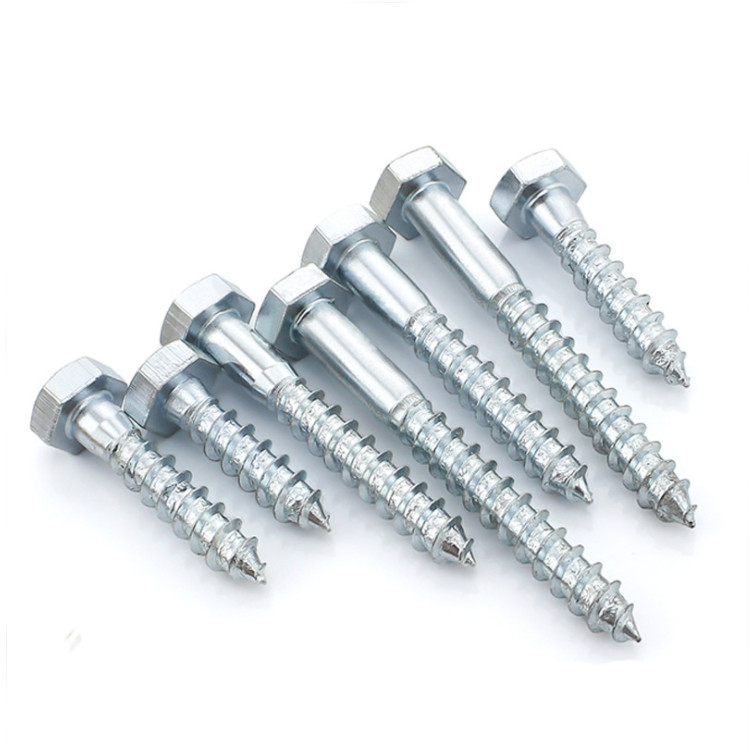

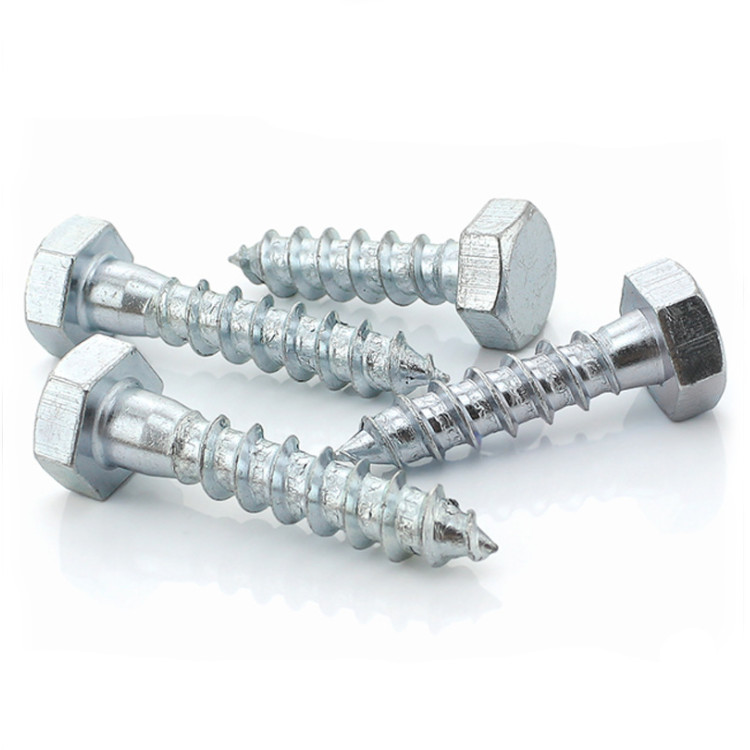

Product show

wood screw/coach screw/hex lag wood screw

Related data

Installation Parameters

Thread	Nut thickness	Edge of a nut	drill hole	Wrench Size
M6	4	10	6mm	10
M8	5.0-5.2	13	8mm	13
M10	6.0-6.2	17	10mm	17
M12	8.0-8.2	19	12mm	19

DIN571 Standard specification

Size	Weight	Size	Weight	Size	Weight	Size	Weight
M6*30	6.1	M8*40	15	M10*40	27	M12*80	63
M6*40	7.4	M8*50	17.4	M10*50	30.4	M12*100	73
M6*50	8.9	M8*60	19.7	M10*60	33	M12*120	87
M6*60	10.3	M8*70	23.3	M10*70	40.4	M12*140	100.7
M6*70	11.5	M8*80	25.4	M10*80	43.8	M12*150	106
M6*80	13.9	M8*90	28.5	M10*90	48.9	M12*160	111.3
M6*90	15.8	M8*100	31.7	M10*100	52.8	M12*180	129
M6*100	18.2	M8*120	36.1	M10*120	60.2	M12*200	136
M6*110	18.7	M8*130	40	M10*130	64	M12*220	150
M6*120	19.4	M8*140	43	M10*140	67.5	M12*240	164
M6*130	22.8	M8*150	45	M10*150	73	M12*260	182
M6*140	24	M8*160	48.8	M10*160	76.8	M12*280	197
M6*150	24.8	M8*180	53	M10*180	85	M12*300	213
		M8*200	59	M10*200	93.7
				M10*220	101
				M10*240	112
				M10*260	122
				M10*280	132
				M10*300	142

ANSI Standard Specification

1/4	5/16	3/8	1/2
1/4 x 1	5/16 x 1	3/8 x 1	1/2 x 2
1/4 x 1-1/4	5/16 x 1-1/4	3/8 x 1-1/2	1/2 x 2-1/2
1/4 x 1-1/2	5/16 x 1-1/2	3/8 x 2	1/2 x 3
1/4 x 2	5/16 x 2	3/8 x 2-1/2	1/2 x 4
1/4 x 2-1/2	5/16 x 2-1/2	3/8 x 3	1/2 x 5
1/4 x 3	5/16 x 3	3/8 x 4	1/2 x 6
1/4 x 4	5/16 x 4	3/8 x 5	1/2 x 7
1/4 x 5	5/16 x 5	3/8 x 6	1/2 x 8
1/4 x 6	5/16 x 6	3/8 x 8	1/2 x 10
	5/16 x 8	3/8 x 10
	5/16 x 10
