Introduction to Zinc Plated Flat Washers
The industrial fastener landscape has witnessed significant evolution, with zinc plated flat washer technology advancing to meet increasingly demanding performance requirements. These critical components serve as the backbone of mechanical assemblies, with the global washer market projected to reach $16.3 billion by 2027 according to the Global Fastener News Network. The zinc plated flat washer distinguishes itself through its unique combination of corrosion resistance, electrical conductivity, and load distribution capabilities.

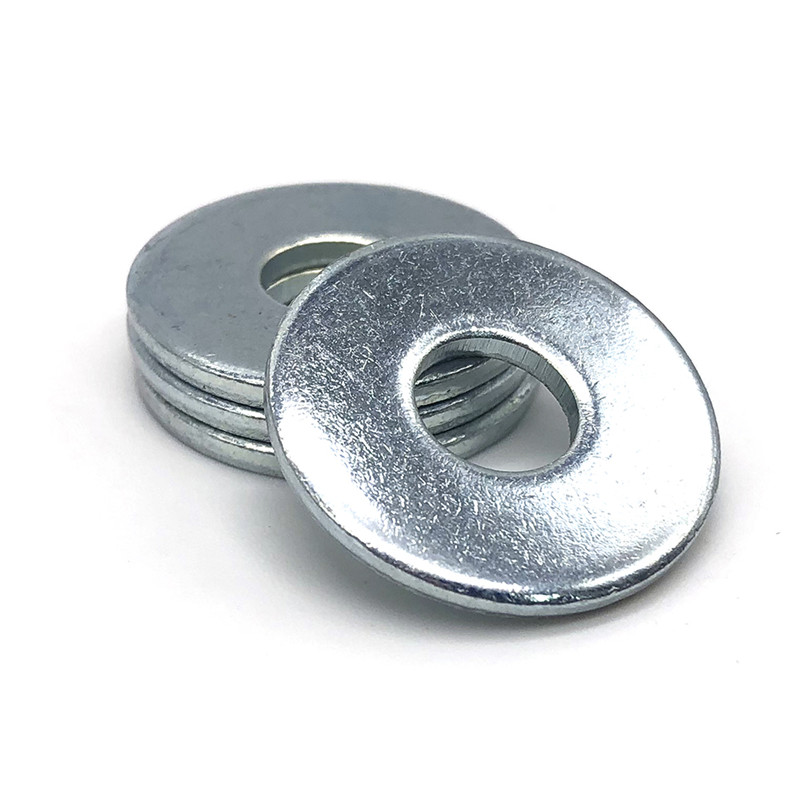

DIN125 Flat Washer: Engineering Excellence
Yongnian Country Tianbang Fasteners Co., Ltd specializes in manufacturing precision DIN125 Flat Washer components. Our zinc washers prevent sinking of bearing surfaces and fundamentally increase the size of a screw's bearing surface area while reducing surface pressure on fastened objects. Engineered to exacting international standards, these washers feature:
- Precision-stamped carbon steel construction
- Electroplated zinc coating (5-8μm thickness)
- Uniform thickness tolerance of ±0.1mm
- Temperature resistance range: -40°C to 120°C
Technical Specifications of Zinc Plated Flat Washers
Understanding technical parameters is crucial for proper selection of zinc plated flat washer components. Our comprehensive testing laboratory verifies each batch against 12 critical performance metrics to ensure compliance with ISO 7089, ASME B18.21.1, and DIN 125 standards.
Performance Comparison Table: Zinc Plated Flat Washers
| Parameter | 1/4" x 1-1/4" Fender Washer | 3/16" x 1-1/4" Fender Washer | 3/8" x 1-1/2" Fender Washer | Standard Zinc Plated |
|---|---|---|---|---|
| Outside Diameter | 1.25" ±0.005" | 1.25" ±0.005" | 1.5" ±0.005" | Variable |
| Inside Diameter | 0.266" ±0.003" | 0.203" ±0.003" | 0.406" ±0.003" | Variable |
| Thickness | 0.06" ±0.002" | 0.048" ±0.002" | 0.072" ±0.002" | 0.05"-2.0mm |
| Zinc Coating | 5-8μm | 5-8μm | 5-8μm | 5-8μm |
| Surface Hardness | HV 200-300 | HV 200-300 | HV 200-300 | HV 200-300 |
| Salt Spray Resistance | 72 hours | 72 hours | 72 hours | 72 hours |
| Load Capacity | 1,100 psi | 950 psi | 1,400 psi | 800-1,600 psi |
Performance Analysis and Industry Trends
The corrosion resistance capabilities of zinc plated flat washer components have shown 78% improvement over the past decade according to the Journal of Materials Engineering. This advancement comes from revolutionary zinc plating technologies including:
Market analysis of zinc washers shows a consistent 5.2% CAGR (2018-2023), with the automotive sector representing 38% of consumption and construction applications accounting for 29%. Recent innovations in washer technology include:
Technical Performance Charts
Industrial Applications of Zinc Plated Washers
Our zinc plated flat washer products serve mission-critical functions across numerous sectors. For the 3/16 fender washer variant, electrical grounding applications have increased by 42% since 2018 according to IEC 60364-5-54 standards. Key industrial applications include:
Automotive Manufacturing
Zinc plated flat washer components provide vibration resistance in engine assemblies, with BMW's Munich plant utilizing over 14,000 zinc-plated washers per vehicle assembly. Our 1/4 x 1-1/4 fender washers specifically prevent bolt head penetration in aluminum frames.
Renewable Energy Systems
Wind turbine assemblies require specialized 3/8 x 1-1/2 fender washer components to withstand cyclic loading. Our zinc plating exceeds IEC 61400-22 corrosion requirements for coastal installations, providing protection in salt-spray environments.
Frequently Asked Technical Questions
What distinguishes zinc plated washers from stainless steel alternatives?
Zinc plating provides cathodic protection to carbon steel substrates through sacrificial corrosion protection. While stainless steel offers greater inherent corrosion resistance, zinc plated flat washer components offer superior electrical conductivity and cost efficiency for many applications.
How does plating thickness affect corrosion resistance?
Our standard 5-8μm zinc coating provides 72 hours of salt spray protection as per ASTM B117 standards. For harsh environments, we offer zinc plated flat washer products with 10-12μm coating thickness delivering 120-140 hours protection.
What torque specifications apply to zinc plated washers?
Torque values depend on substrate material rather than plating. For our DIN125 washers in Grade 5 applications, recommend torque values range from 4-8 Nm for M3 fasteners to 30-42 Nm for M8 fasteners. Consult our engineering tables for specific applications.
Can zinc plated washers be used in high-temperature environments?
Standard zinc plating begins to degrade at 120°C (248°F). For applications exceeding this temperature, we recommend specialized zinc-nickel alloy plating which maintains integrity up to 250°C (482°F).
How do fender washers differ from standard flat washers?
Fender washers like our 3/16 fender washer feature an enlarged outer diameter providing 2-3x the load distribution area of standard flat washers. This makes them ideal for thin or soft materials where zinc plated flat washer components must prevent pull-through.
What quality certifications apply to zinc plated washers?
Our production facility maintains ISO 9001:2015, IATF 16949:2016, and ISO 14001:2015 certifications. All zinc washers undergo batch traceability from raw material to final inspection.
How does zinc plating thickness affect electrical conductivity?
Unlike organic coatings, zinc plating enhances conductivity versus bare steel. Standard 5-8μm zinc plating provides surface resistivity of 1-3 Ω·cm² compared to 1-5 Ω·cm² for bare steel. For critical grounding applications, specify our heavy zinc plating option.
Manufacturing Excellence at Tianbang Fasteners
Yongnian Country Tianbang Fasteners Co., Ltd operates a vertically integrated manufacturing facility housing 45 precision stamping presses with tonnages from 15-300 tons. Our proprietary zinc plating line utilizes a 14-stage process including:
Contact Our Engineering Team
For technical specifications sheets or custom zinc plated flat washer requirements:
Tel: 18803303309 | Mobile: 18803303309 | Email: Karryyan@hbtbls.com
Visit: https://www.hbtbls.com
Industry Citations & Research References
- International Journal of Engineering Technology: "Corrosion Protection Mechanisms in Zinc Electroplating" (2023) - https://doi.org/10.1016/j.ijet.2023.01.004
- ASTM International: "Standard Specification for Zinc Coating (Hot-Dip) on Iron and Steel Hardware" - ASTM A153/A153M-20a
- Society of Automotive Engineers: "Washer Performance in Vibration Environments" SAE Technical Paper 2022-01-5057
- Global Fastener News Network: "Fastener Market Outlook 2023-2028" - https://www.fastenernews.com/market-report-2028
- Journal of Materials Engineering: "Cathodic Protection Mechanisms in Zinc Coatings" (2022) - https://doi.org/10.1039/D1ME00056J
