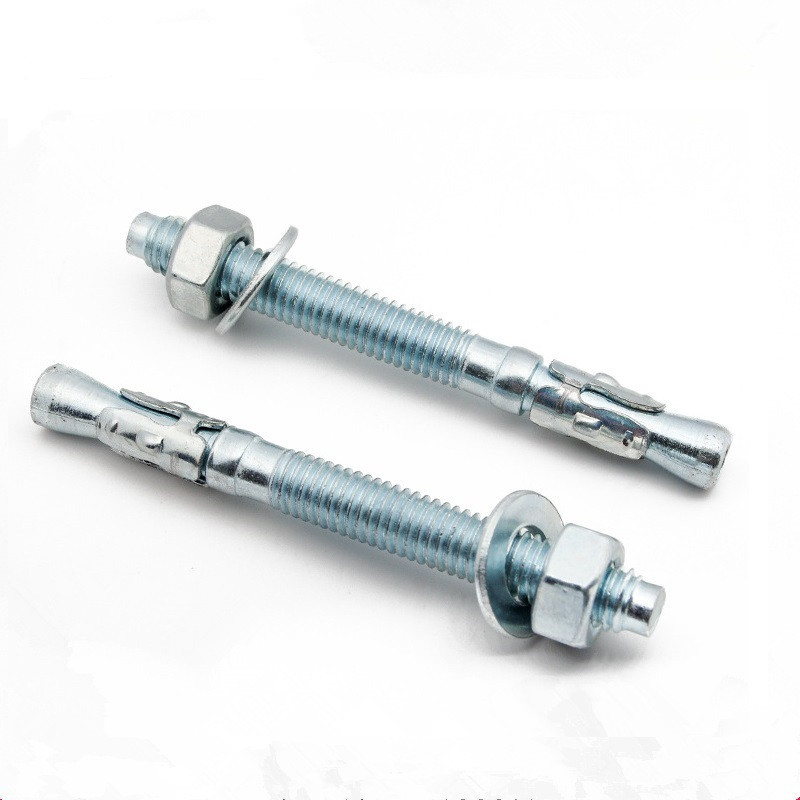

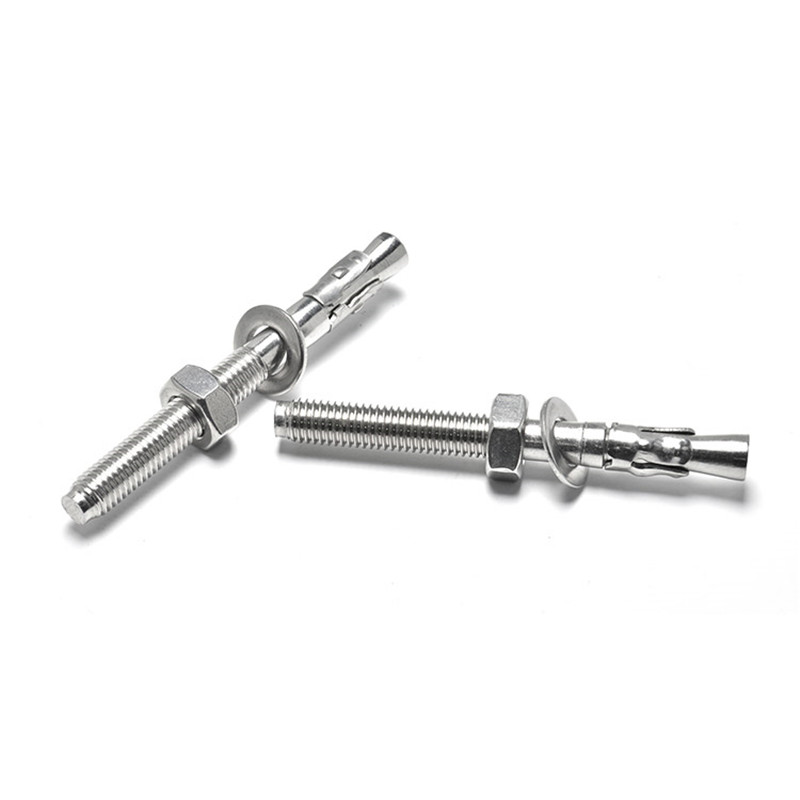

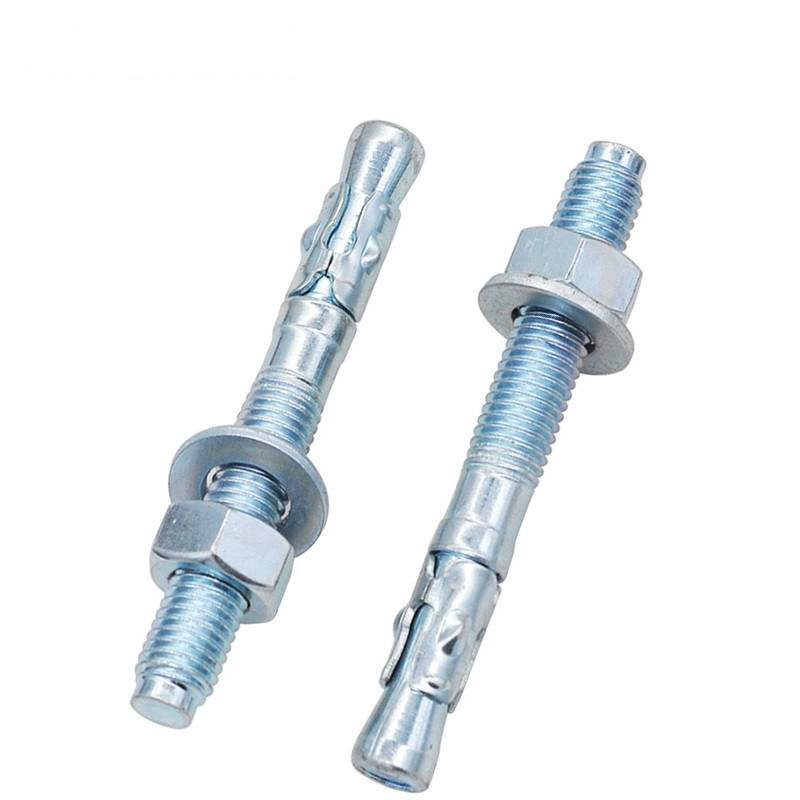

Expansion Wedge Anchor: field notes, specs, and a few hard-won lessons

If you work anywhere near concrete, you’ve met the Wedge Anchor before. Ours comes from Dongtantou North, Yongnian, Hebei, China—an area that quietly powers a big slice of the world’s fasteners. I’ve walked those plants; you hear presses before you see them. And, to be honest, you pick up a lot by ear.

What’s trending (and why it matters)

Specification creep: more projects calling for test data aligned with ACI/EN methods, even for commodity anchors.
Surface finish upgrades: HDG and duplex systems in coastal/HVAC work—service life pressure is real.
Traceability: lot coding and mill certs on request; many customers say this is now non-negotiable for audits.

Core specifications (quick glance)

Product	Expansion Wedge Anchor / Through Bolt
Diameter	M6–M24
Length	40–400 mm
Material	Carbon steel Q235 (clip hardened); optional 8.8 on request
Finish	Plain, zinc-plated, black, HDG (≈ 40–85 μm, real-world use may vary)
Standards	DIN/ANSI/ISO/GB for geometry & threads; testing per ACI/EN methods on request

Process flow, quality, and testing

Materials: Q235 wire rod → cold forging → thread rolling → wedge-clip hardening (carburize & temper) → assembly → surface treatment (zinc/HDG) → 100% visual + sampling tests.

Methods and standards used: thread GO/NO-GO (ISO 1502), coating per ISO 4042 or ASTM A153 (HDG), salt spray where requested (ISO 9227), tensile/pull-out per ACI 355.2 methods; design reference EN 1992-4. I guess the short version: the clip must bite uniformly, or the rest is theater.

Service life: zinc indoors ≈ 5–10 years; HDG in C3 environments ≈ 15–30 years—ballpark, because atmosphere and edge distance change the story.

Where a Wedge Anchor shines

MEP/HVAC supports, pipe hangers, cable trays
Racking, guardrails, handrails, machinery baseplates
Elevator guide rail brackets, façade subframes (non-cracked concrete preferred unless verified)

Installation notes: drill diameter = anchor diameter; embedment typically 4–10d (check load), keep edge distances per design; torque to spec. Many field issues trace back to over-drilling and dust… surprisingly common.

Illustrative internal test snapshot (single anchor)

M12, effective embedment ≈ 70 mm, C25/30 concrete, dry: ultimate tension ≈ 25–30 kN; shear ≈ 20–22 kN. Method aligned with ACI 355.2 fixture; real-world may vary due to concrete, spacing, edges, and torque.

Why pick this Wedge Anchor (and who else to consider)

Through-bolt convenience: fixture in place, drill through, set, torque—fast.
Clip geometry tuned for reliable expansion; consistent torque feel (installers notice).
Customization: sizes M6–M24, lengths up to 400 mm, finishes, packaging, logo, and lot traceability.

Vendor	Certs/Tests	Customization	Lead Time	Price Band
HBTBLS (Hebei, China)	ISO/GB; ACI/EN test reports on request; mill certs	High (sizes, finish, packing)	≈ 15–30 days	Economical
Global Brand X	ETA/ICC options; extensive public data	Medium	Stock to 14 days	Premium
Regional Trader Y	Basic CoC; limited testing	Low–Medium	≈ 7–21 days	Low

Bottom line: if you need documented tests and customization without the premium label, this is a sweet spot.

Real-world snapshots

Warehouse retrofit: M12 HDG anchors for pallet racking; crew reported ≈ 18% faster install vs. sleeve anchors due to through-bolt workflow.
Chiller platform: M16 zinc-plated in interior plant room; torque retention checked at 48h—no spin, no crack initiation noted.

Feedback is consistent: installers like predictable bite and nuts that don’t “walk” under final torque. Simple things, big difference.

Ordering & customization

MOQ is flexible; OEM branding, barcode labels, and mixed-length cartons available. For coastal or chemical exposure, ask for HDG or duplex systems and, if needed, witness testing. It seems that a 5-minute spec chat upfront saves days onsite.
