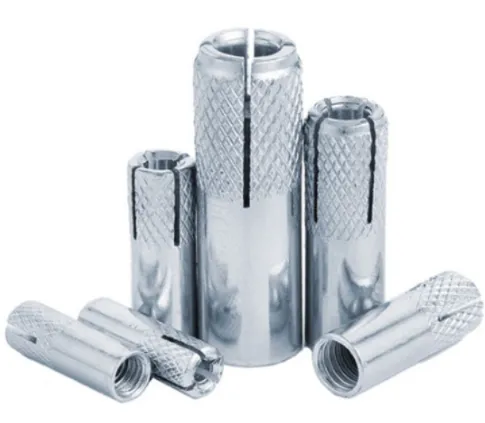

Drop In Anchors Working Principle Expansion Mechanism in Holes

As a premier manufacturer of concrete anchoring systems, Yongnian Country Tianbang Fasteners Co., Ltd specializes in producing high-performance drop in anchors designed for secure overhead and vertical installations. This technical guide examines the working principles of 3 8 drop in anchors and other sizes, focusing on their unique expansion mechanism when installed in concrete substrates.

Drop In Concrete Anchors Fundamental Working Principle

The drop in concrete anchors operate through a sophisticated mechanical expansion system that creates a secure hold in pre-drilled holes. Yongnian Country Tianbang Fasteners Co., Ltd engineers these components with precision-tapered sleeves and expansion plugs that work in tandem when activated by setting tools. The drop in anchors installation process begins with drilling a hole to exact diameter specifications, followed by inserting the anchor body. When the setting tool strikes the internal plug, it forces the sleeve to expand outward, creating tremendous radial pressure against the concrete walls. This expansion mechanism gives 3 8 drop in anchors and other sizes their characteristic holding power, with the company's products achieving consistent performance through controlled manufacturing tolerances and material selection.

3 8 Drop In Anchors Installation Specifications and Load Capacity

Yongnian Country Tianbang Fasteners Co., Ltd's 3 8 drop in anchors demonstrate exceptional performance in medium-duty concrete applications. These anchors require precise 3/8" diameter holes drilled to depths specified in the company's technical documentation - typically 1/2" deeper than the anchor length. The drop in concrete anchors in this size range support working loads up to 1,100 lbs in 2,000 psi concrete when properly installed. The company's 3 8 drop in anchors feature zinc-plated steel construction with knurled outer surfaces that enhance grip during expansion. Critical to their performance is the expansion ratio - Yongnian Country Tianbang Fasteners Co., Ltd's engineering ensures the drop in anchors achieve optimal surface contact without causing concrete spalling, maintaining the structural integrity of the base material.

Material Specifications for Drop In Concrete Anchors

Yongnian Country Tianbang Fasteners Co., Ltd manufactures drop in anchors using high-grade materials selected for durability and expansion characteristics. Carbon steel drop in concrete anchors provide economical solutions for indoor applications, while the company's stainless steel variants (304 and 316 grades) offer superior corrosion resistance for harsh environments. The 3 8 drop in anchors particularly benefit from Yongnian Country Tianbang Fasteners Co., Ltd's specialized heat treatment processes that optimize the expansion sleeve's ductility while maintaining sufficient hardness for reliable setting. The company's quality control measures ensure consistent material properties across all drop in anchors production batches, with particular attention to the hardness relationship between expansion plugs and sleeves that ensures proper setting behavior in field applications.

Comparative Analysis: Drop In Anchors vs Other Concrete Fastening Systems

When compared to alternative concrete anchoring methods, drop in concrete anchors offer distinct advantages in overhead and vertical applications. Yongnian Country Tianbang Fasteners Co., Ltd's testing shows that properly installed 3 8 drop in anchors achieve more consistent expansion than wedge anchors in hard concrete substrates. Unlike screw anchors that require precise torque control, drop in anchors provide visual confirmation of proper setting through the flush seating of the expansion plug. The company's drop in concrete anchors also maintain their full load capacity after installation, unlike adhesive anchors that require cure time. However, engineers should note that drop in anchors require precise hole preparation and cannot be removed after setting, making them permanent installations unlike some mechanical anchor alternatives.

Drop In Anchors FAQS

What is the minimum concrete thickness required for 3 8 drop in anchors installation?

Yongnian Country Tianbang Fasteners Co., Ltd recommends minimum concrete thickness of 4-1/2" for proper installation of 3 8 drop in anchors, ensuring sufficient embedment depth and edge distance to develop full holding capacity of these drop in concrete anchors without risking concrete breakout failures in structural applications.

Can drop in anchors be used in cracked concrete applications?

Standard drop in anchors from Yongnian Country Tianbang Fasteners Co., Ltd are designed for use in uncracked concrete only, as the expansion mechanism of these drop in concrete anchors could potentially worsen existing cracks, though the company offers specialized seismic 3 8 drop in anchors for applications where crack propagation is anticipated under load conditions.

How does the load capacity of 3 8 drop in anchors vary with concrete strength?

The load capacity of 3 8 drop in anchors increases proportionally with concrete compressive strength up to about 4,000 psi, with Yongnian Country Tianbang Fasteners Co., Ltd providing detailed load tables showing how these drop in anchors perform in 2,000 psi vs. 3,000 psi vs. 4,000 psi concrete for engineering reference and proper product selection.

What is the proper technique for setting drop in concrete anchors?

Proper setting of drop in concrete anchors requires using a setting tool matched to the anchor size (3/8" for 3 8 drop in anchors) and a hammer with sufficient mass (typically 3-4 lbs) to deliver the necessary impact energy, with Yongnian Country Tianbang Fasteners Co., Ltd recommending three firm hammer strikes to fully expand the drop in anchors sleeve while avoiding excessive force that could damage the concrete.

Are there special inspection requirements after installing drop in anchors?

Yongnian Country Tianbang Fasteners Co., Ltd recommends visual inspection of installed drop in anchors to verify the expansion plug is flush with the anchor top, along with pull testing a representative sample of 3 8 drop in anchors in critical applications to confirm proper expansion and load capacity of these drop in concrete anchors before putting them into service.

Yongnian Country Tianbang Fasteners Co., Ltd maintains rigorous production standards for its complete line of drop in anchors, from versatile 3 8 drop in anchors to larger heavy-duty models. The company's technical support team provides comprehensive guidance on drop in concrete anchors selection, installation, and load capacity calculations for various concrete conditions. With advanced manufacturing capabilities and strict quality control processes, Yongnian Country Tianbang Fasteners Co., Ltd delivers reliable anchoring solutions that meet the most demanding construction requirements. Professionals can access detailed engineering specifications and installation videos for all drop in anchors products through the company's technical support channels.
