Galvanized Carbon Steel Anchor: an insider’s take on Drop In Anchors

Made in Dongtantou North, Yongnian, Hebei, China, these are the straightforward fasteners that MEP pros and rack installers keep buying because—honestly—they just work. Flush finish, no hardware snagging workers’ sleeves, and a predictable install. I’ve walked more than a few job floors where supervisors swear by Drop In Anchors for suspended piping and threaded-rod hangers.

Quick recap: what they are and where they shine

• Designed for indoor, dry concrete. Only solid concrete—do not use in brick or block.
• Requires a size-matched setting tool; a few taps with a hammer to expand the sleeve.
• Thread length ≈ half the anchor length; sizes are “fixed” to the thread you choose.
• When installed, nothing protrudes above the surface—clean and tamper-resistant.

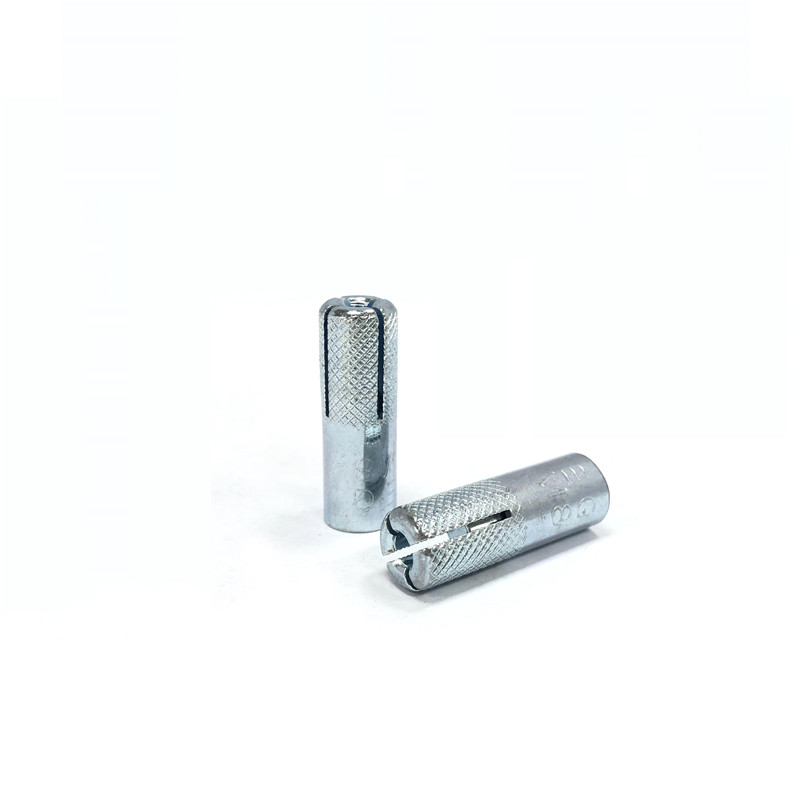

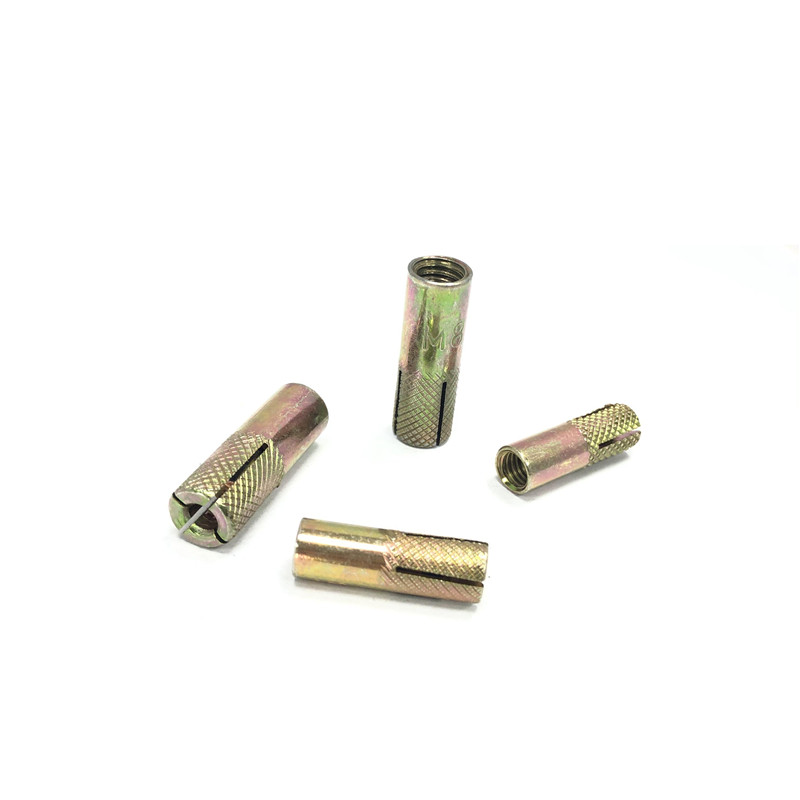

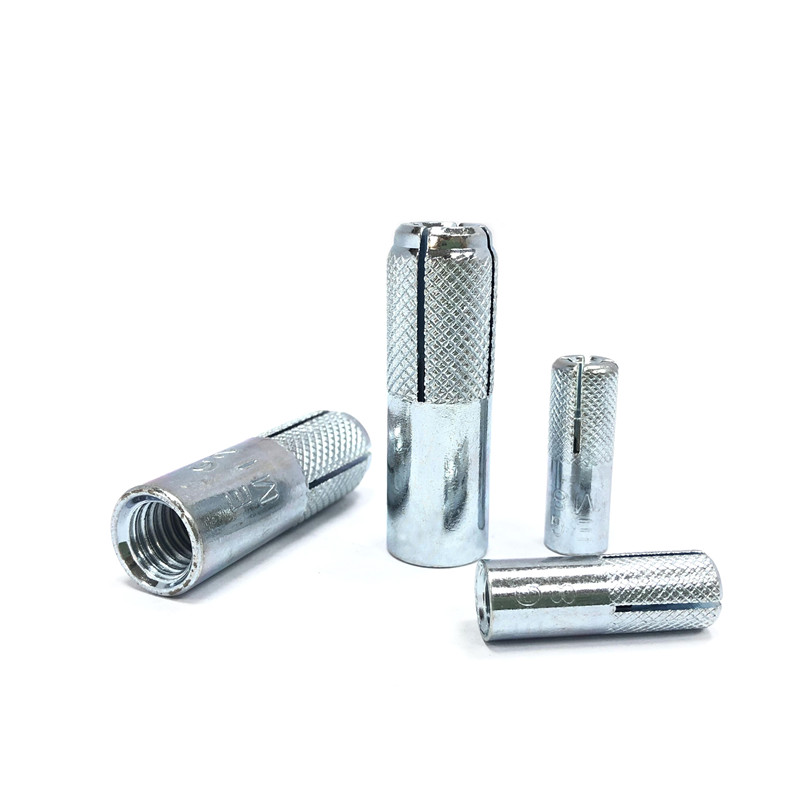

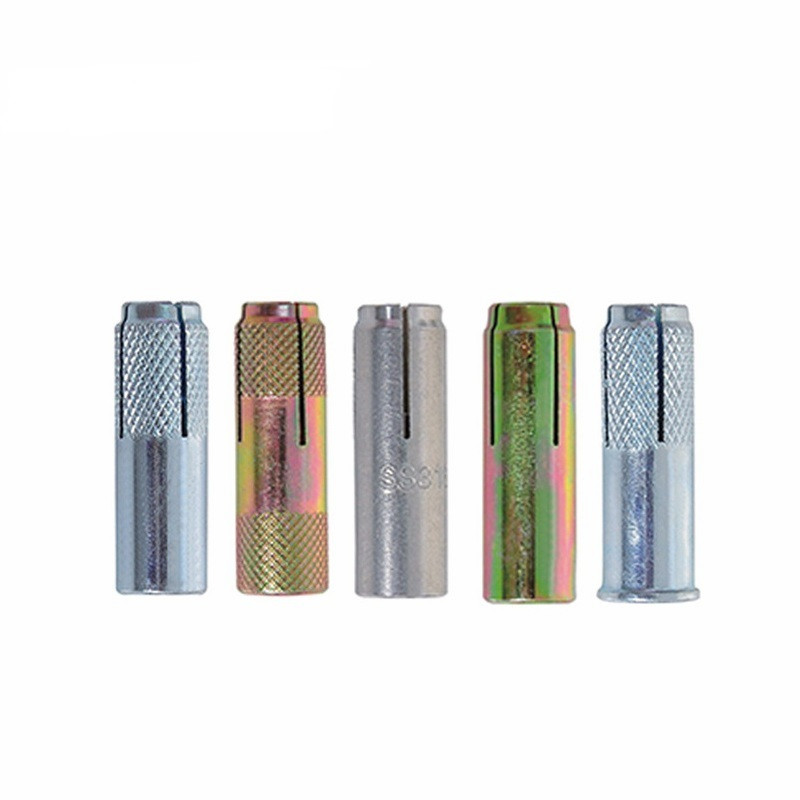

• Available smooth, half-knurled, or full-knurled for added friction.

Industry trend check

Right now, we’re seeing specifiers nudge toward tested, documented anchors with ACI/ASTM data, even for simple Drop In Anchors. There’s interest in traceability (heat codes, QR’d bags), sustainability talk around zinc thickness and recycling, plus toolmakers bundling color-coded setting tools to reduce field mistakes. Not hype—just practical refinements.

Specs that matter (approximate, real-world may vary)

Size	Anchor L (mm)	Thread L (mm)	Drill Ø	Tension ≈ kN	Shear ≈ kN	Notes
M8 / 5/16"	30–35	≈15–18	10 mm	3.5–5.0	4.0–5.5	C25/30 concrete, dry
M10 / 3/8"	40	≈20	12 mm	5.5–7.5	6.0–8.0	Use matched setting tool
M12 / 1/2"	50	≈25	16 mm	8.0–11.0	9.0–12.0	Indoor service only

Material: galvanized carbon steel (cold-formed). Finish: zinc or hot-dip galvanized, depending on SKU. Service life indoors: around 10–25 years, depending on humidity, chloride exposure, and maintenance.

Process and testing (how they’re made and proven)

• Methods: cold forging, precision threading, optional half/full knurling, zinc/HDG coating, final sizing and gauging.
• Testing: proof load checks, expansion-set verification, pull-out tests per ASTM E488/E488M and ACI 355.2 guidelines.
• Certifications (typical): ISO 9001 factory QMS; material certs; mill/heat codes on cartons. ETA/ICC-ES as required by project (ask vendor).
• Sample internal lab results: M10 in C30 concrete averaged 6.6 kN tension and 7.2 kN shear over 10 pulls (dry, uncracked).

Applications (and a few “don’ts”)

Mechanical/HVAC hangers, sprinkler mains, cable trays, light machinery skids, ceiling grids, and racking safety stops. Don’t use Drop In Anchors outdoors in corrosive zones unless coating and design allow; absolutely avoid brick/block; and mind edge/spacing—follow ACI guidance.

Customization

Threads: M6–M20 and UNC 1/4–20 to 3/4–10. Knurling: smooth, half, full. Packaging: bulk or box with private label. Marking and QR traceability on request. Many customers say the half-knurl is a sweet spot for faster set yet firm bite.

Vendor comparison (indicative)

Vendor	Origin	MOQ	Lead Time	Custom Knurling	Certs
HB TBLS (Galvanized Carbon Steel Anchor)	Hebei, China	≈ 5,000 pcs	2–4 weeks	Yes (smooth/half/full)	ISO 9001; test reports
Brand X	EU	≈ 2,000 pcs	4–6 weeks	Limited	ETA where applicable
Brand Y	US	≈ 1,000 pcs	1–3 weeks	Yes	ICC-ES/AC193 options

Two quick case notes

• Healthcare retrofit: 1,800+ Drop In Anchors M10 used for cable trays; GC reported “zero callbacks, flush finish simplified ceiling close-outs.”
• Warehouse MEP: M12 anchors for sprinkler hangers; site foreman told me the half-knurl “set faster—less bounce on the hammer.”

Standards to reference

Design and verification typically reference ASTM E488/E488M, ACI 355.2, and acceptance criteria such as ICC-ES AC193. Always check project specs.

Final thought

If you want a clean-looking, repeatable anchor for dry, solid concrete—and you like knowing your threads are protected below the surface—Drop In Anchors remain a safe bet.

Authoritative citations

1. ASTM E488/E488M – Standard Test Methods for Strength of Anchors in Concrete and Masonry Elements.
2. ACI 355.2 – Qualification of Post-Installed Mechanical Anchors in Concrete.
3. ICC-ES AC193 – Acceptance Criteria for Mechanical Anchors in Concrete Elements.
