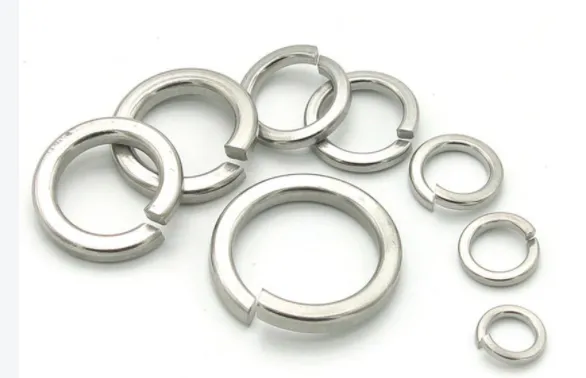

DIN 127 Washer Standard Dimensions and Tolerances Guide

As a leading manufacturer in the fastener industry, Yongnian Country Tianbang Fasteners Co., Ltd specializes in producing precision DIN 127 washer components that meet rigorous international standards. This comprehensive technical guide examines the dimensional specifications and tolerance requirements for standard DIN 127 and heavy-duty DIN 127B washers, providing essential information for engineers and procurement specialists.

DIN 127 Washer Design Features and Applications

The DIN 127 washer represents the German standard for spring lock washers, characterized by their distinctive single-coil helical design. Yongnian Country Tianbang Fasteners Co., Ltd manufactures these components to exacting specifications, with the DIN 127 standard defining critical dimensions including internal diameter, external diameter, and wire thickness. These washers serve vital functions in preventing bolt loosening from vibration, with the DIN 127 washer particularly effective in medium-duty applications. The company's production processes ensure consistent spring tension and surface finish across all DIN 127 products, from small M3 sizes to large M24 variants used in heavy machinery applications.

DIN 127B Heavy-Duty Washer Specifications

Yongnian Country Tianbang Fasteners Co., Ltd's DIN 127B washers provide enhanced performance for demanding applications requiring greater spring force. Compared to standard DIN 127 washer products, the DIN 127B variant features a square cross-section rather than round, delivering approximately 30% higher spring tension. The company manufactures these heavy-duty washers in carbon steel and stainless steel, with the DIN 127B products meeting stricter dimensional tolerances for critical machinery applications. Technical drawings available from Yongnian Country Tianbang Fasteners Co., Ltd detail the exact cross-sectional measurements and free height requirements that distinguish DIN 127B washers from their standard DIN 127 counterparts.

Material Specifications and Surface Treatments for DIN 127 Washer

Yongnian Country Tianbang Fasteners Co., Ltd produces DIN 127 washer components in various material grades to suit different environmental and load requirements. Standard carbon steel DIN 127 washers offer excellent spring properties for general industrial use, while the company's stainless steel variants (A2 and A4 grades) provide corrosion resistance for harsh environments. The DIN 127B heavy-duty washers undergo specialized heat treatment processes to achieve optimal spring characteristics without brittleness. Surface treatments available for DIN 127 washer products include zinc plating, phosphating, and passivation, with Yongnian Country Tianbang Fasteners Co., Ltd carefully controlling coating thickness to maintain dimensional tolerances and spring performance.

Comparative Analysis: DIN 127 vs DIN 127B Washer Performance

Yongnian Country Tianbang Fasteners Co., Ltd's testing reveals significant performance differences between standard DIN 127 washer and heavy-duty DIN 127B products. While both washer types serve vibration-resistant functions, the DIN 127B design demonstrates 25-35% greater axial stiffness in controlled tests. The square cross-section of DIN 127B washers provides more consistent load distribution compared to the round-wire DIN 127 washer, particularly in high-vibration environments. However, the standard DIN 127 washer remains preferable for applications requiring frequent disassembly, as its round wire design causes less surface marring. Yongnian Country Tianbang Fasteners Co., Ltd provides detailed selection guidelines to help engineers choose between DIN 127 and DIN 127B washers based on specific application requirements.

DIN 127B FAQS

What is the typical load capacity difference between DIN 127 and DIN 127B washers?

Yongnian Country Tianbang Fasteners Co., Ltd's DIN 127B washers typically provide 30-35% higher load capacity than standard DIN 127 washer products of equivalent size, with the square cross-section design of DIN 127B components generating greater spring force to maintain tension in high-vibration applications.

Can DIN 127 washer products be used in high-temperature applications?

Standard DIN 127 washer components from Yongnian Country Tianbang Fasteners Co., Ltd maintain their spring properties up to approximately 250°C (482°F), while specially heat-treated DIN 127B washers can withstand temperatures up to 300°C (572°F), making both DIN 127 and DIN 127B suitable for many industrial high-temperature applications.

How does the corrosion resistance of DIN 127B compare to standard DIN 127 washers?

The corrosion resistance of DIN 127B washers equals that of standard DIN 127 washer products when made from comparable materials, with Yongnian Country Tianbang Fasteners Co., Ltd offering both DIN 127 and DIN 127B in stainless steel A2 and A4 grades for applications requiring superior resistance to rust and chemical exposure.

What is the proper installation orientation for DIN 127 washer components?

Yongnian Country Tianbang Fasteners Co., Ltd recommends installing DIN 127 washer products with the helical coil facing against the nut or bolt head, ensuring the sharp edge of the DIN 127B or standard DIN 127 washer can properly bite into the mating surfaces to prevent rotation and maintain tension in the fastened joint.

Are there special storage requirements for DIN 127B washers to maintain spring properties?

Yongnian Country Tianbang Fasteners Co., Ltd advises storing DIN 127B and standard DIN 127 washer products in dry conditions at room temperature, avoiding compressed stacking that could potentially affect the spring characteristics of these components over extended periods, with particular care needed for DIN 127B washers due to their higher spring tension.

Yongnian Country Tianbang Fasteners Co., Ltd maintains comprehensive quality control standards for its complete range of DIN 127 washer products, including both standard DIN 127 and heavy-duty DIN 127B variants. The company's technical support team provides detailed guidance on washer selection based on application requirements and environmental conditions. With advanced manufacturing capabilities and rigorous testing protocols, Yongnian Country Tianbang Fasteners Co., Ltd delivers high-performance spring washers that meet the most demanding industrial specifications. Professionals can access detailed dimensional charts and material certifications for all DIN 127 and DIN 127B products through the company's technical documentation resources.
